What are cladded fittings

Crystal's cladded fittings from UAE comply with the most demanding standards of strength, corrosion resistance and cost effectiveness. Generally the outer part of the pipe is made of carbon steel to withstand the inner pressures, while the inner high alloyed cladding of the pipe

Welcome to world-class cladded pipes in UAE from Crystal Industrial

Our cladded pipes comply with the most demanding standards of strength, corrosion resistance and cost effectiveness. Generally the outer part of the pipe is made of carbon steel to withstand the inner pressures, while the inner high alloyed cladding of the pipe is meant to protect against corrosion.

We offer two types of cladding process :

  • Metallurgically cladded plates
  • Mechanically bonded pipes

Metallurgically clad plates : We use a unique patent pending process to make pipes using metallurgically clad plates. The process guarantees a tight bonding between the different materials.

We have been producing such pipes for reputed companies world-wide, especially in the oil and gas industry.

We offer a wide variety of size range. We produce OD's from 114.3 mm (4") up to 1 219 mm (48") in a variety of material combinations. We can supply you pipes with either an external or internal cladding.

Mechanically bonded plates : This consists of a corrosion resisting pipe that's telescopically aligned inside a pipe in carbon-manganese material. Hydraulic expansion is used to create a tight bonding between the two pipes.

We produce such pipes in a variety of size ranges, in OD's from 114.3 mm (4") up to 660 mm (26") and lengths up to 12 m without circumferential weld.

Compared with metallurgically clad pipes, our mechanically bonded pipes offer a wide range of material combinations for both the inner and outer pipe and remarkable price advantages. The cost saving is due to the use of economic carbon steels in conjunction with corrosion resisting steels and a low-cost production process. Also the process allows for easy assembly on site.

cladded fittings IN UAE

cladded-fittings

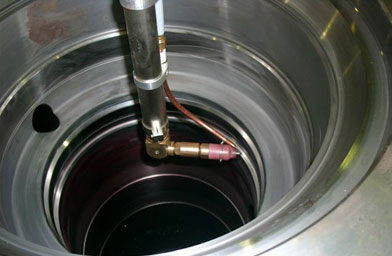

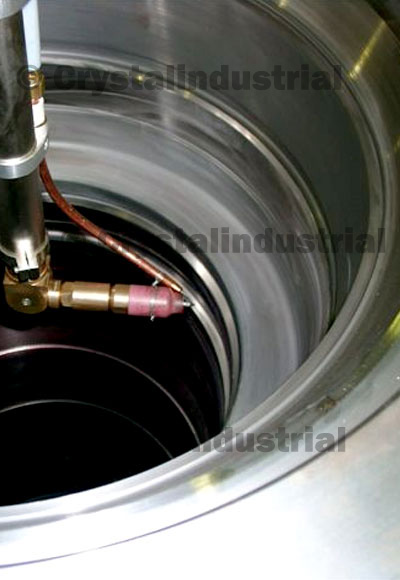

Valve body/Bonnet Cladding
Specialised Cladding using ETR (Fronius) & vertical cladding machine up to bore of 20 mm in Inconel, Hastelloy, monel Etc.
cladded-fittings

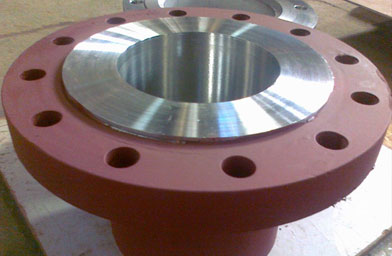

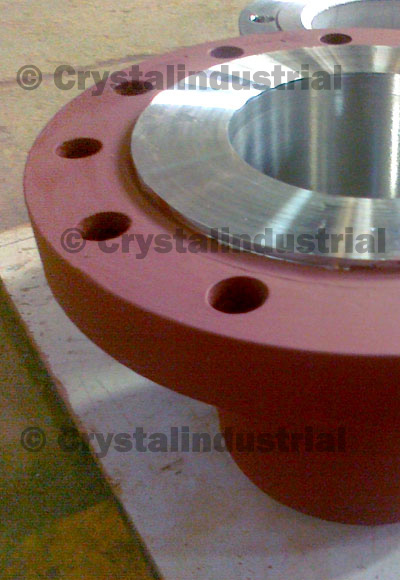

Flange Cladding
Capability up to 2" to 120" flange dia in horizontal and vertical weld cladding machine from (Fronius)
cladded-fittings

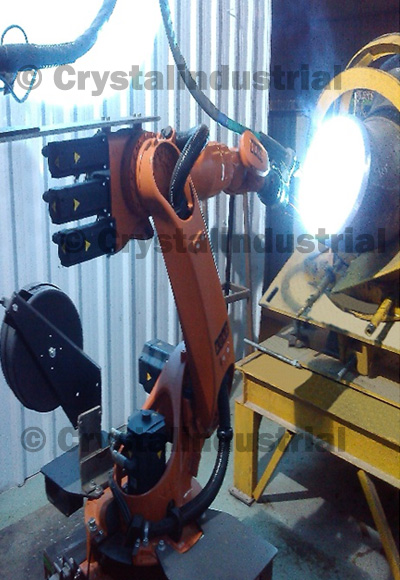

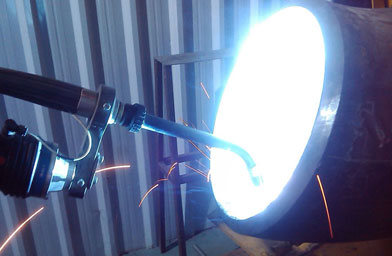

Elbow/ Tee Cladding
Cladding in Inconel 625/825, Monel. Using welding Robots (Kuka) and ETR (Fronius) for 3"NB to 42"NB including weld edge bevel cladding
cladded-fittings

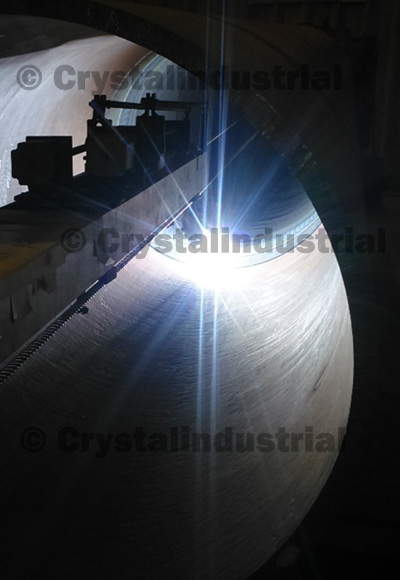

Pipe Cladding
Size form 3"NB to 36"NB using Horizontal pipe cladding machine with Inconel 625/825, monel, Hastelloy and other exotic metals
